Plastic PVC pipe extruder for water supply

Date:2022-3-27 Author:

PVC plastic is a multi-component plastic according to different uses can add different additives due to different components of PVC products present different physical and mechanical properties for different applications. And PVC plastic pipe in plastic pipe accounted for a larger proportion.

The pvc pipe extruder working flow:

Mixing Machine → Material Feeder → Conical Twin-screw Extruder → Vacuum Calibration Tank→ Haul-off  Machine → Cutting Machine → Stacker →Waste Pipe Recycling Machine(Crusher&Milling Machine)

Materials and application of pvc pipe extruder

•Pressure Pipe- water distribution system- water supply

•Non Pressure Pipe- sewer systems/drain water- waters discharge systems for civil and industrial building- meteoric waters discharge- venting system

•Industrial Application

•Cable Conduit

•Flexible Pipe- gardening hose- protection sheathing for electric cable

PVC pipe extruder is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.
The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
Producing pipe diameter range: Φ16mm-Φ630mm.
And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

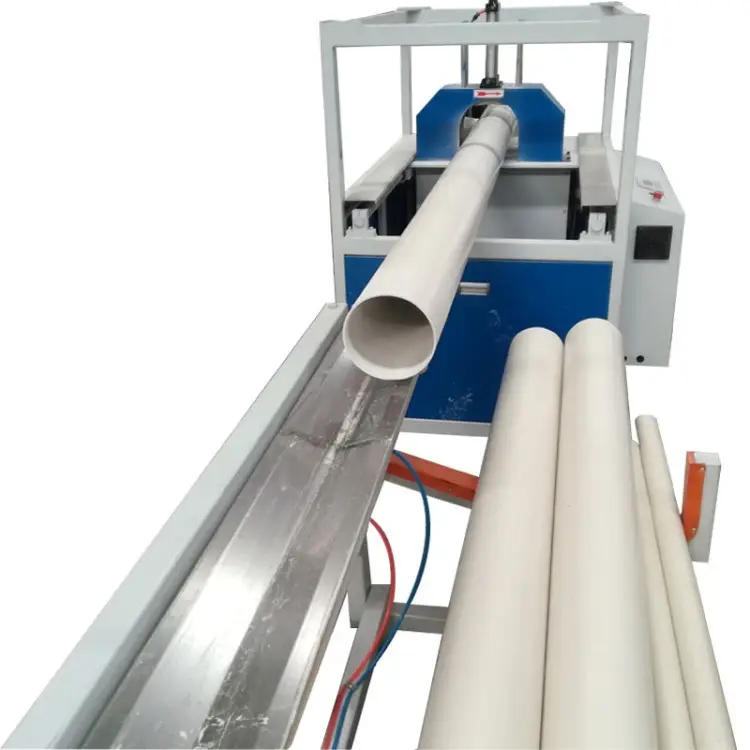

pvc pipe extruder
pvc-pipe-extruder

Advantages


1. Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
2. Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
3. Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
4. Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;
5. Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
6. U type, R type and Air blow type socket can be provided according to applications;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
